MODEL INDENTIFICATION:
JKD-P - 50 - SP - 5 - 5 - V - U - Ti
1 2 3 4 5 6 7 8 9
| 1 | MODEL | JKD-P |
| 3 | IN/OUTLET | 20-32*20 ; 25-40*25 ; 50-50*40; 65-80*65 |
| 4 | SPECIFIC GRAVITY | SP-1.4 |
| 5 | POWER | ¼HP,½HP,1HP,2HP,3HP, 5HP, 7.5HP, 10-10HP |
| 6 | FREQUENCY | 5-50HZ 6-60HZ |
| 7 | O-RING | E-EPDM V-VITON N-NBR |

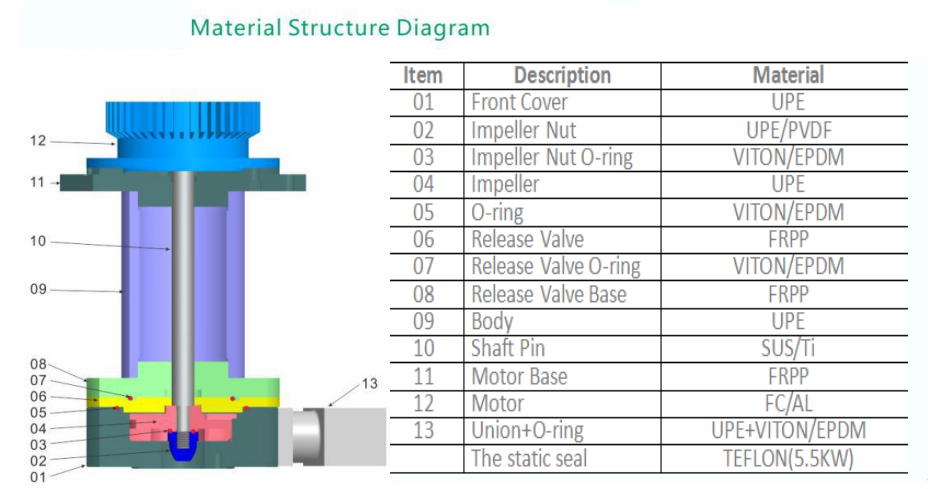

| 8 | MATERIAL | U- UPE(Ultra high molecular weight polyethylene) |
| 9 | SHAFT MATERIAL | 4-SUS304 6-SUS316 Ti-Ti |
| MODEL | IN/OUTLET | 50HZ | POWER | |
| (mm) | MAX.HEAD(m) | MAX.CAP(L/min) | kw | |
| JKD-P-20SP¼ | 32*20 | 5 | 80 | 0.18 |
| JKD-P-25SP½ | 40*25 | 7 | 95 | 0.37 |
| JKD-P-25SP-1 | 40*25 | 8 | 110 | 0.75 |
| JKD-P-40SP-2 | 50*40 | 10.5 | 160 | 1.5 |
| JKD-P-40SP-3 | 50*40 | 11 | 230 | 2.2 |
| JKD-P-50SP-5 | 65*50 | 14.5 | 220 | 3.75 |
| JKD-P-65SP-7.5 | 80*65 | 18 | 330 | 5.5 |
| JKD-P-65SP-10 | 80*65 | 20 | 400 | 7.5 |
DIMENSION:
1. This product is our newly developed pump in 2019, material are manufactured from Ultra high molecular weight polyethylene(UPE),will can made the pump wear resistance,corrosion resistance,lifespan;
. Wear resistance ranks first in plastics, 7 times higher than carbon steel, 4 times higher than PTFE;
. Corrosion resistance: It can resist various corrosive media and organic solvent media within a certain temperature and humidity range, and has extremely high chemical stability;
.UPE's low temperature performance is excellent, and it is malleable at the temperature of liquid helium ;
.Widely used in the semiconductor industry;
2.Strong embedded impeller:High pressure;
3.The vertical chemical pump -JKD-P series widely used in high corrosive environment &acid chemical process such as etching,cooling circulating and plating;
4.It is designed to installed in and outside tank and can be fitted together with filter system;
5.This series vertical pump no damaged in drying-running;
6.For corrosive environment, it is recommended to use Titanium bolt and nuts and Epoxy paint on motor body to prolong motor lifespan;different brands motor of choice to your needs,for example:QUCHI,TECO and ABB;
Type JKD-P vertical chemical pumps are designed to handle acids, alkalis or chemically contaminated fluids with or without solids. Typical applications include the chemical industry, electroplating plants, steel and stainless steel pickling lines, evaporation and regeneration units, flue gas cleaning systems downstream of waste incinerators as well as exhaust air scrubbing and industrial waste water treatment;
