MODEL INDENTIFICATION:
JKB F 75 10 2 N A H C C H 5
1 2 3 4 5 6 7 8 9 10 11 12
| 1 | MODEL | JKB |
| 2 | MATERIAL | F - FRPP P- PVDF |
| 3 | IN/OUTLET | 40-1.5", 50-2", 75-3" |
| 4 | POWER | 00-½, 01-1HP,02-2HP, 03-3HP,05-5HP, 07-7.5HP, 10-10HP |
| 5 | POLE | 2-2P 4-4P |
| 6 | O-RING | N -NBR E -EPDM V -VITON |
| 7 | A-WITH CHECK VALVE(INLET HIGHER THAN LIQUID LEVEL)B-NON CHECK VALVE(INLET LOW THAN LIQUID LEVEL) | |
| 9 | STATIONARY RING | C-CERAMIC S-SIC |
| 10 | ROTATIONAL RING | C-CARBON S-SIC |
| 11 | SPRING | SUS316 |
| 12 | FREQUENCY | 5-50HZ 6-60HZ |
SPECIFICATION:
| MODEL | IN/OUT（mm） | POWER(HP) | PHASE | 50HZ | 60HZ | ||
| MAX HEAD(m) | MAX FLOW(L/min) | MAX HEAD(m) | MAX FLOW(L/min) | ||||
| JKB-40012L | 40*40 | 1 | 3 | 12.8 | 244 | 16 | 240 |
| JKB-40014L | 40*40 | 1 | 3 | 8.2 | 236 | 10 | 270 |
| JKB-40022L | 40*40 | 2 | 3 | 17.4 | 360 | 21 | 320 |
| JKB-40022H | 40*40 | 2 | 3 | 18.5 | 360 | 25 | 350 |
| JKB-40032H | 40*40 | 3 | 3 | 22.5 | 410 | 28 | 400 |
| JKB-50032L | 50*50 | 3 | 3 | 21.5 | 380 | 21.6 | 340 |
| JKB-50032H | 50*50 | 3 | 3 | 23 | 410 | 30 | 420 |
| JKB-50052H | 50*50 | 5 | 2 | 25 | 650 | 35 | 540 |
| JKB-75052H | 75*75 | 5 | 2 | 26 | 750 | 34 | 660 |
| JKB-75072H | 75*75 | 7.5 | 2 | 27 | 900 | 38.5 | 980 |
| JKB-75102H | 75*75 | 10 | 2 | 28.5 | 960 | 40 | 1050 |
SELF PRIMING PUMP-JKB series Features:
1.The material of pump body made from FRPP or PVDF suitable for chemical and corrosive environment.
2.It is designed with self priming vacuum, an extremely powerful self priming force & built with a choke valve fully prevents liquid back-flow into the pump.

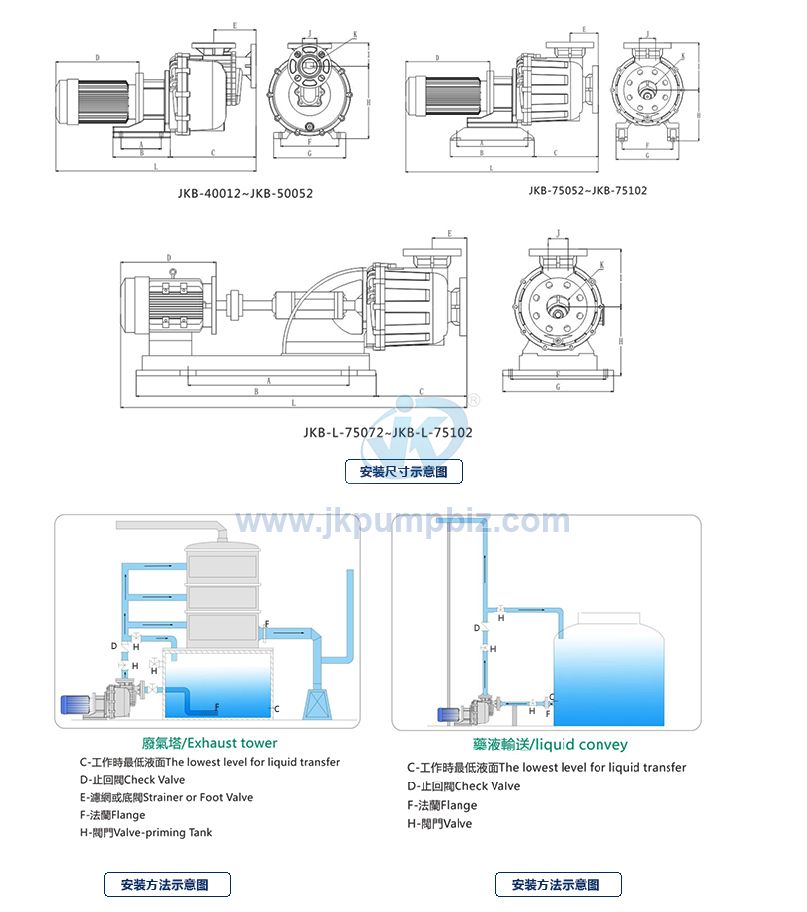

3.To protect the pump:-
To prevent foreign material entering the suction inlet, foot valve should be installed at the inlet.
To prevent from immediate back-flow, check valve should be installed at the outlet.
Back-flow into the pump can cause pump’s body damage as well as dry-running.
4.Depending on customers’ needs, cooling circulated tube can be assembled. The liquid inside the pump circulates and cools down the shaft seal especially during dry-running.
5.The self priming centrifugal pump -JKB series best applicable to acid and alkaline chemical liquids, all polluted water treatment & etc.
The self priming centrifugal pump -JKB series best applicable to acid and alkaline chemical liquids, all polluted water treatment & etc.
