Self priming pump-MGS

Innovation&energy saving self priming pump run dry-MGV(In years 2020);

Material:FRPP/PVDF;

Motor power:1~5HP;

Max.Head:8.2m~25m;Max.Flow:236~500L/min;(50HZ);

Max.Head:10m~28m;Max.Flow:270~520L/min;(60HZ);

Application: MGS series best applicable to acid and alkaline chemical liquids, all polluted water treatment & etc;

Certification: ISO9001:2015,CE certification,Production&sales intellectual property management system certification;

Inquire Now None

Product Description
Specifications
Features
Application

MGS F 40 01 2 E B L S S S 5

1 2 3 4 5 6 7 8 9 10 11 12

1	MODEL	MGS
2	MATERIAL	F - FRPP C-CFRPP P- PVDF
3	IN/OUTLET	40-1.5" 50-2 "
4	POWER	01-1HP ,02-2HP, 03-3HP, 05-5HP
5	POLE	2-2P 4-4P
6	RUBBBER	N-NBR E-EPDN V-VITON
7	A-WITH CHECK VALVE(INLET HIGHER THAN LIQUID LEVEL)B-NON CHECK VALVE(INLET LOW THAN LIQUID LEVEL)
8	L-LOW HEAD H-HIGH HEAD
9	STATIONARY RING	C-CERAMIC S-SIC
10	ROTATIONAL RING	C-CARBON S-SIC
11	SPRING	SUS316
12	FREQUENCY	5-50HZ 6-60HZ

Self priming pump-MGS

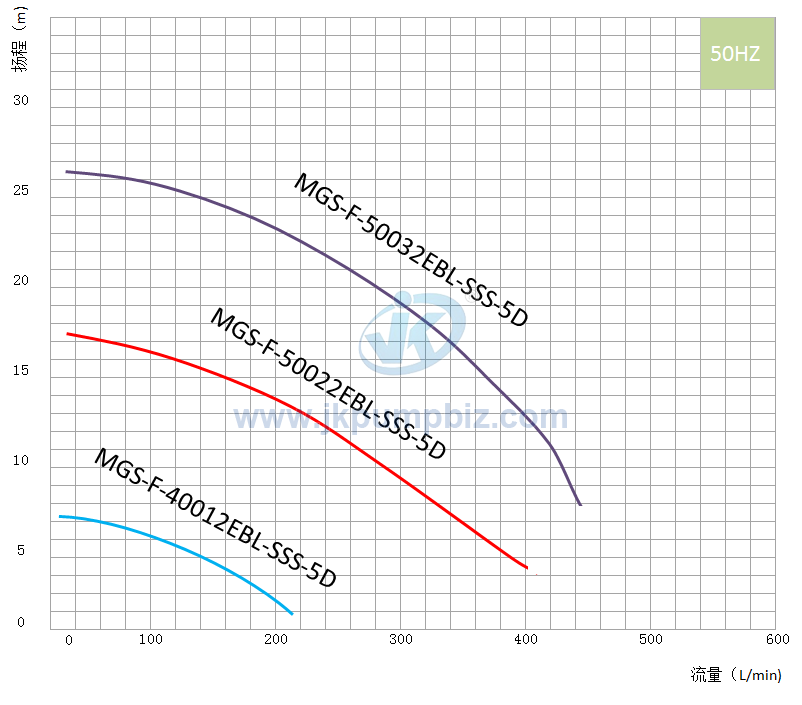

SPECIFICATION:

MODEL	IN/OUT（mm）	POWER(HP)	POLE	50HZ		60HZ
MODEL	IN/OUT（mm）	POWER(HP)	POLE	MAX HEAD(m)	MAX FLOW(L/min)	MAX HEAD(m)	MAX FLOW(L/min)
MGS-401	40*40	1	2	8.2	236	10	270
MGS-402	40*40	2	2	17.4	360	21	320
MGS-503	50*50	3	2	21.5	380	21.6	340
MGS-505	50*50	5	2	25	500	28	520

SELF PRIMING PUMP -MGS series Features:

1.The material of pump body made from FRPP,CFRPP or PVDF suitable for chemical and corrosive environment;

FRPP and CFRPP material are temperature resistance up to 75℃;

PVDF material is temperature resistance up to 100℃;

2.The self priming centrifugal pump MGS Series of magnetically driven non-metallic pumps offer an innovative true self-priming design with no mechanical seals;

3.The MGS series proven non-contact dry-run capability enabling them to withstand the rigors of abnormal operating conditions.;

4.The MGS Series order superior repeatable self-priming performance. Beside dry run capabili ;

MGS series have a suction depth of 5 meter compare to other normal pump;

5.Depending on customers's needs, cooling circulated tube can be assembled. The liquid inside the pump circulates and cools down the shaft seal especially during dry-running;

6.The self priming water pump -MGS series best applicable to acid and alkaline chemical liquids, all polluted water treatment & etc;

The self priming water pump -MGS series best applicable to acid and alkaline chemical liquids, all polluted water treatment & etc;
