Magnetic drive seal-less pump-CQB

Share

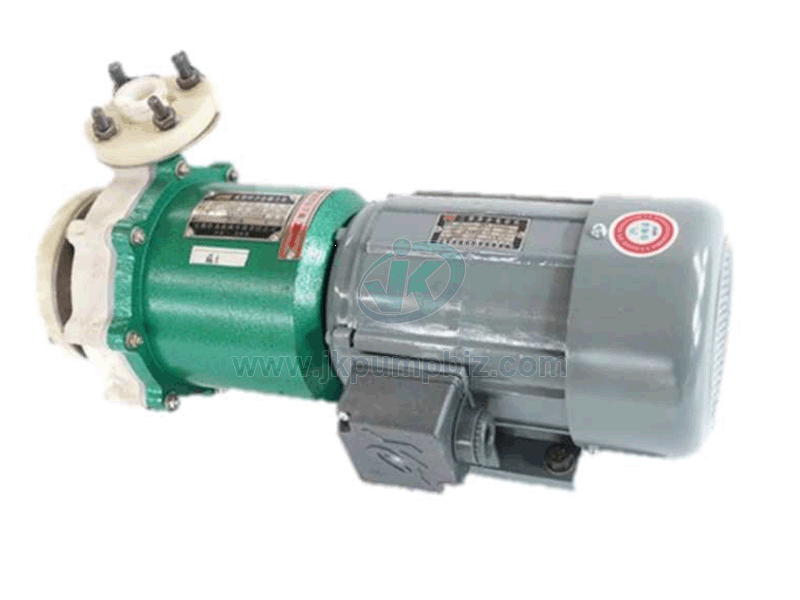

Magnetic centrifugal pump-CBQ

Material of front casing:PTFE

Material of pump housing:Cast Iron

Motor power:0.75KW~4.0KW;

Frequency : 50/60HZ;

Capacity:12.5~63 m3/h;

Head:15m~32m;

Widely used in chemical industry, medicine, aluminum foil, acid, coating, non-ferrous metal industries and inflammable, explosive, toxic, and volatile organic solvent and precious liquids;


  • Product Description
  • Specifications
  • Features
  • Application

Model I ndentification:

CQB 40- 25- 120

1  2  3  4


1

Model

CQB

2

Inlet

40mm

3

Outlet

25mm

4

Impeller

120mm

5

Front casing

PTFE

Features:

1.The CQB series magnetic drive pumps front casing material is made from PTFE and the pump housing is made from cast iron;

2.CQB series Magnetic drive pumps used magnetic coupling dynamic seals, thoroughly eliminate the general shaft driving centrifugal pumps, the shaft seal leakage phenomenon;

3. Its flow components by fluorine plastic and high purity industrial ceramic, excellent corrosion resistance and sealing, therefore, is widely used in chemical industry, medicine, aluminum foil, acid, coating, non-ferrous metal industries and inflammable, explosive, toxic, and volatile organic solvent and precious liquids;

4.Operating temperature: -20℃~100℃;

5.Our CQB magnetic pumps speed:1450RPM ~ 2900RPM;


Specification:


Model

Power(kw)

Capacity(m3/h)

Head(m)

Rotating speedr/min

Voltage

CQB40-25-120F

0.75

63

15

2900

220v-380v

CQB50-32-125F

2.2

12.5

20

2900

220v-380v

CQB50-32-160F

4.0

12.5

32

2900

220v-380v

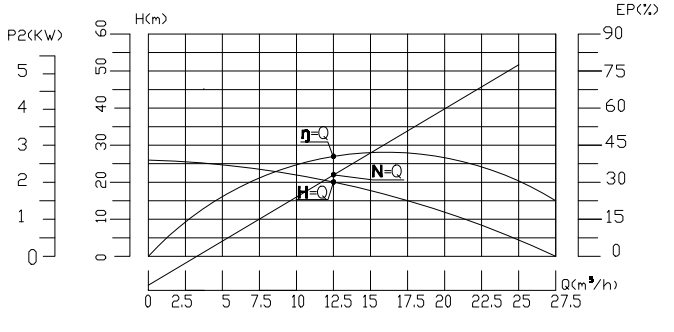

Performance Curve:

Magnetic Drive  Centrifugal Pump-CBQ

Magnetic Drive  Centrifugal Pump-CBQ

Magnetic Drive  Centrifugal Pump-CBQ

1.The CQB series magnetic drive pumps front casing material is made from PTFE and the pump housing is made from cast iron;

2.CQB series Magnetic drive pumps used magnetic coupling dynamic seals, thoroughly eliminate the general shaft driving centrifugal pumps, the shaft seal leakage phenomenon;

3. Its flow components by fluorine plastic and high purity industrial ceramic, excellent corrosion resistance and sealing, therefore, is widely used in chemical industry, medicine, aluminum foil, acid, coating, non-ferrous metal industries and inflammable, explosive, toxic, and volatile organic solvent and precious liquids;

4.Operating temperature: -20℃~100℃;

5.Our CQB magnetic pumps speed:1450RPM ~ 2900RPM;


Widely used in chemical industry, medicine, aluminum foil, acid, coating, non-ferrous metal industries and inflammable, explosive, toxic, and volatile organic solvent and precious liquids;
