Model Indentification:
IHF 50 32 250
1 2 3 4
Model:IHF
Inlet:50mm;
Outlet:32mm;
Impeller length:250mm

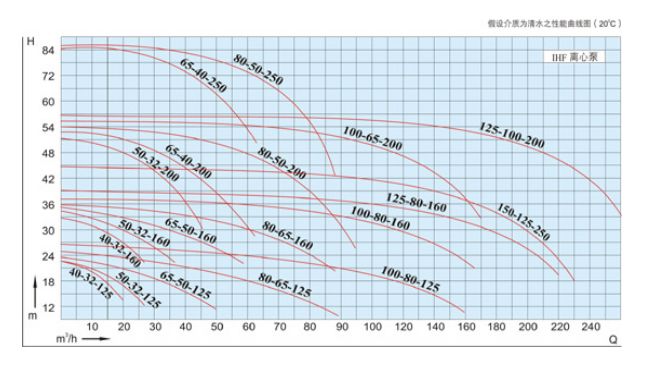

| Model | Rotating Speed:2900r/minMedium Density:1000kg/m3 | Cavitation Allowance(m) | Effectiveness | Rotating Speed:1450r/minMedium Density:1000kg/m3 | Cavitation Allowance(m) | Effectiveness | ||||||||||||
| Capacity(M3/h) | Head(m) | Power(kw) | Capacity(M3/h) | Head(m) | Power(kw) | |||||||||||||
| IHF50-32-250 | 10 | 12.5 | 15 | 82 | 80 | 78 | 11 | 3.5 | 38 | 5 | 6.3 | 8 | 20.5 | 20 | 19.5 | 1.5 | 3.5 | 32 |
| IHF65-40-200 | 15 | 25 | 30 | 52 | 50 | 48 | 11 | 3.5 | 52 | 7.5 | 12.5 | 15 | 13.5 | 12.5 | 15 | 1.5 | 3.5 | 46 |
| IHF80-65-160 | 40 | 50 | 60 | 34 | 32 | 28 | 11 | 4.0 | 67 | 15 | 25 | 30 | 9 | 8 | 7 | 1.5 | 4.0 | 62 |
| IHF80-50-200 | 40 | 50 | 60 | 52 | 50 | 48 | 15 | 4.0 | 63 | 15 | 25 | 30 | 13.5 | 12.5 | 12 | 2.2 | 4.0 | 57 |
| IHF100-80-125 | 80 | 100 | 20 | 22 | 20 | 18.5 | 11 | 4.5 | 77 | 40 | 50 | 60 | 5.5 | 5 | 4.5 | 1.5 | 4.5 | 74 |
| IHF100-80-160 | 80 | 100 | 120 | 34 | 32 | 28 | 15 | 4.5 | 73 | 40 | 50 | 60 | 9 | 8 | 7 | 2.2 | 4.5 | 69 |
| IHF100-65-180 | 80 | 100 | 120 | 42 | 40 | 28 | 22 | 4.5 | 78 | 40 | 50 | 60 | 11 | 10 | 7 | 4.0 | 4.5 | 68 |
| IHF125-100-125 | 120 | 150 | 180 | 15 | 20 | 24 | 22 | 5.0 | 69 | 80 | 100 | 120 | 15.5 | 5 | 4.5 | 5.5 | 5.0 | 69 |
| IHF125-100-160 | 120 | 150 | 180 | 34 | 32 | 28 | 30 | 5.0 | 70 | 80 | 100 | 120 | 9 | 8 | 7 | 5.5 | 5.0 | 70 |
| IHF125-100-200 | 240 | 200 | 150 | 52 | 50 | 48 | 55 | 5.0 | 65 | 80 | 100 | 120 | 13.5 | 12.5 | 12 | 11 | 5.0 | 71 |
| IHF125-100-250 | 240 | 200 | 150 | 82 | 80 | 78 | 75 | 5.0 | 68 | 80 | 100 | 120 | 20.5 | 20 | 19.5 | 15 | 5.0 | 72 |
Note:Too many models are not displayed one by one,please contact us to choose the appropriate model;
IHF single-stage single-suction fluoroplastic alloy chemical centrifugal pump (referred to as IHF centrifugal pump) is designed and manufactured in accordance with international standards and non-metallic pump process. The pump body is lined with metal perfluoroethylene propylene (F46). The pump cover, impeller and shaft sleeve are all sintered and pressed with metal inserts encapsulated with fluorine plastic. The shaft seal is an externally installed advanced bellows mechanical seal. The ring is made of 99.9% alumina ceramic (or silicon nitride), and the moving ring is filled with PTFE. Its corrosion resistance and wear resistance are excellent. The inlet and outlet of the pump are reinforced with cast steel to enhance the pressure resistance of the pump. The actual use shows that the pump has the advantages of corrosion resistance, wear resistance, high temperature resistance, no aging, high mechanical strength, stable operation, advanced and reasonable structure, strict and reliable sealing performance, convenient disassembly and maintenance, and long service life.
The IHF centrifugal pump is designed according to international standards. The pump body is made of metal shell lined with fluoroplastics. The impeller and pump cover are made of metal inserts and encapsulated with fluoroplastic alloy. The shaft seal is made of advanced external bellows mechanical seal. 99.9% alumina ceramics, the moving ring is filled with PTFE, which is characterized by good corrosion resistance and wear resistance.
The corrosion resistance and wear resistance of IHF centrifugal pumps have been confirmed by actual use and unanimously approved by the majority of users. At present, they have been widely used in: corrosive medium transportation in chemical production, chlorine water wastewater treatment in ion membrane caustic soda projects and Acid addition process (at present, most domestic pumps for ion-exchange membrane caustic soda projects use our products), electrolyte transportation in non-ferrous metal smelting, pickling process in automobile manufacturing, and pharmaceuticals, petroleum, electricity, electroplating, dyes, pesticides , Papermaking, food, textile and many other industries, long-term delivery of any concentration of sulfuric acid, hydrochloric acid, hydrofluoric acid, nitric acid, strong alkaline, strong oxidant, organic solvent, reducing agent, etc. under the temperature condition of -20 ℃ ~ 150 ℃ Strongly corrosive to the medium without damage, it is one of the most popular pump equipment used by the users at present.
